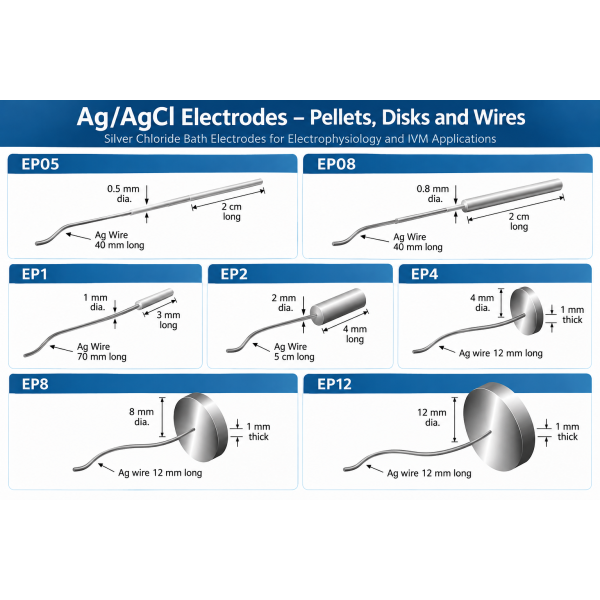

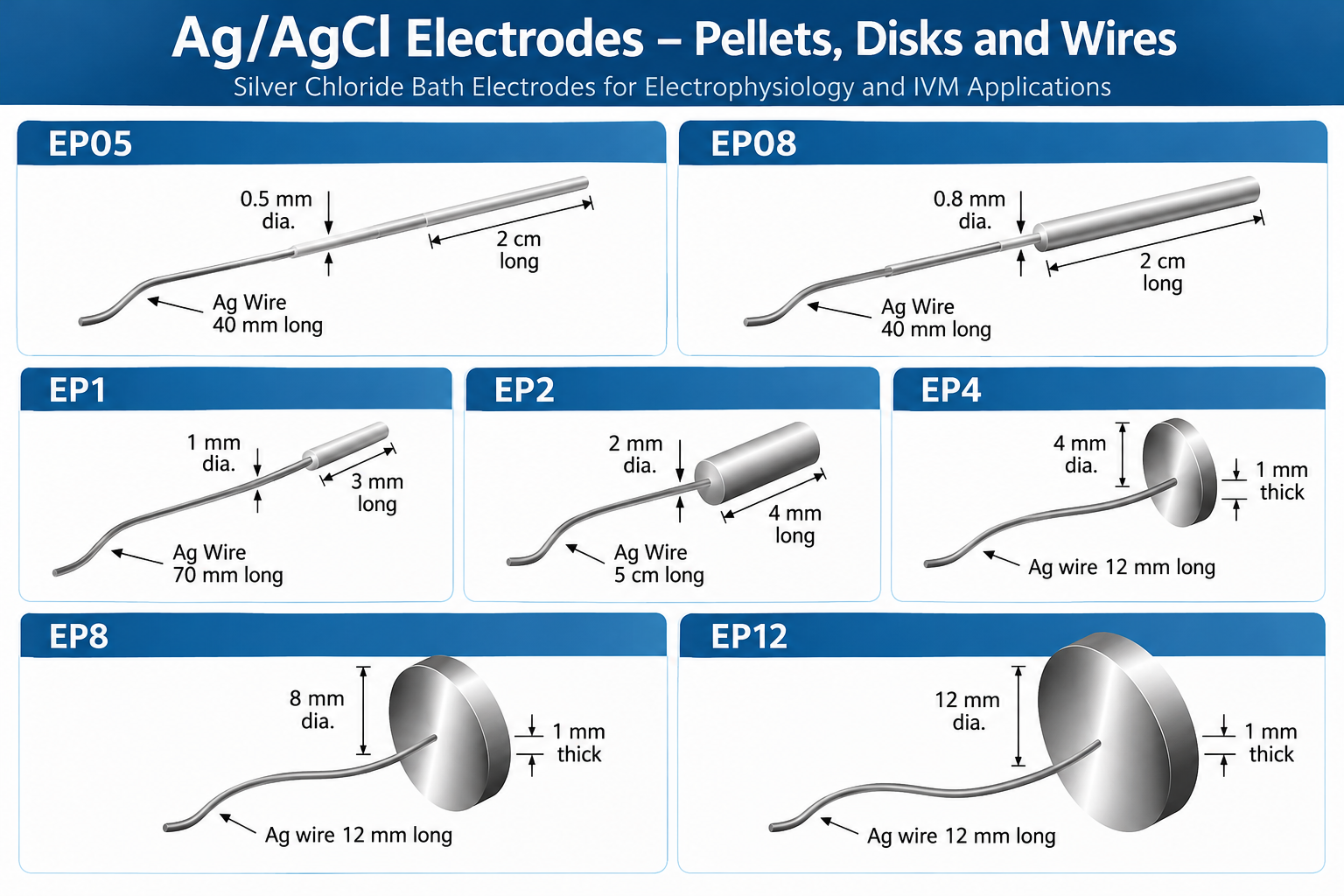

Silver/Silver Chloride (Ag/AgCl) electrodes designed for electrophysiological recordings, bath reference applications, and laboratory research. Available in wire, cylindrical pellet, and disk configurations, with different dimensions to accommodate experimental requirements. Each electrode features an attached silver (Ag) wire for electrical connection.
|

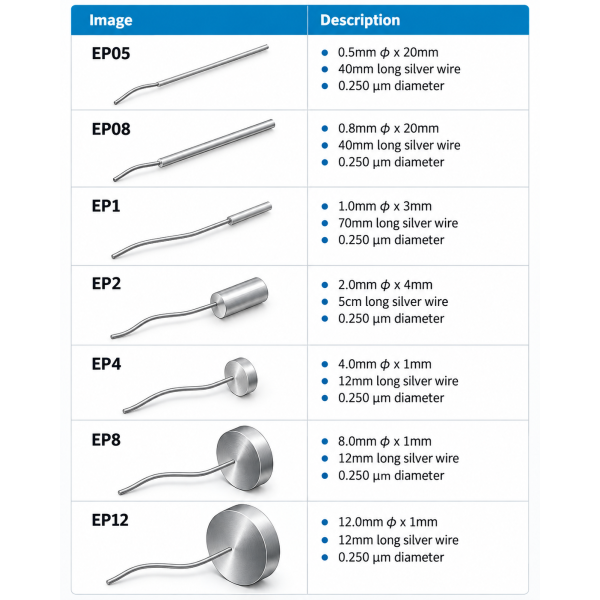

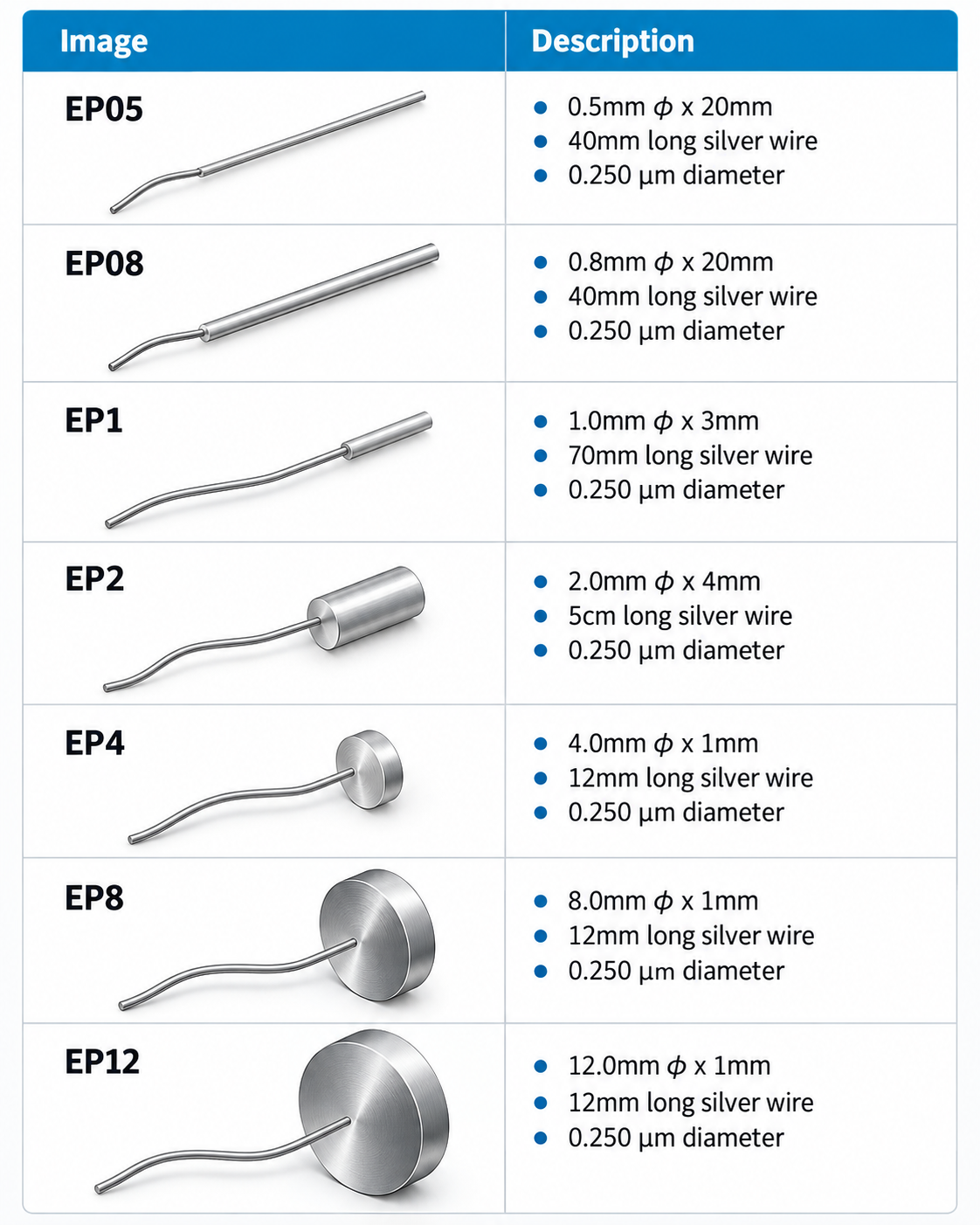

Model
|
Electrode dimensions
|
|
|
|
EP05
|
Ø 0.5 mm × 20 mm long
|
40 mm
|
Wire
|
|
EP08
|
Ø 0.8 mm × 20 mm long
|
40 mm
|
Wire
|
|
EP1
|
Ø 1 mm × 3 mm long
|
70 mm
|
Pellet
|
|
EP2
|
Ø 2 mm × 4 mm long
|
50 mm
|
Pellet
|
|
EP4
|
Ø 4 mm × 1 mm thick
|
12 mm
|
Disk
|
|
EP8
|
Ø 8 mm × 1 mm thick
|
12 mm
|
Disk
|
|
EP12
|
Ø 12 mm × 1 mm thick
|
12 mm
|
Disk
|
Applications
-
Electrophysiological recording and reference electrodes.
-
Extracellular recordings and bath electrode configurations.
-
In vitro electrophysiology and experimental research.
-
Electrical measurements in physiological solutions

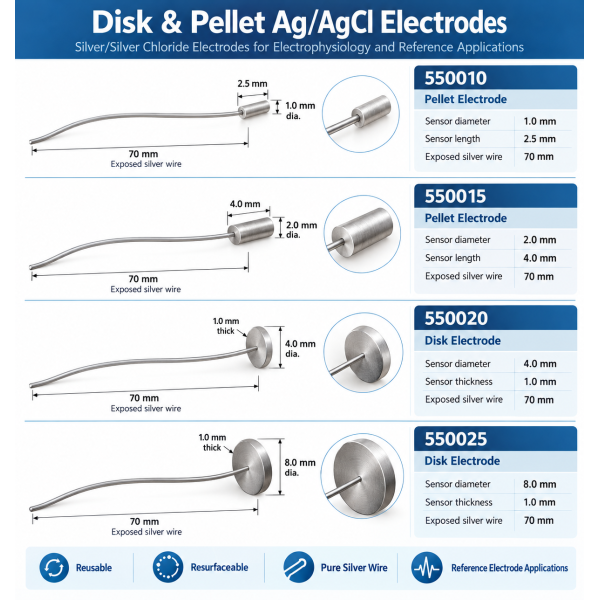

Disk & Pellet Ag/AgCl Electrodes
|
Code
|
Type
|
Diam.
|
sensor-length
|
Exposed
Wire
|
|
550010
|
Pellet
|
1,0 mm
|
2,5 mm
|
70 mm
|
|
550015
|
Pellet
|
2,0 mm
|
4,0 mm
|
70 mm
|
|
550020
|
Disk
|
4,0 mm
|
1,0 mm
|
70 mm
|
|
550025
|
Disk
|
8,0 mm
|
1,0 mm
|
70 mm
|
Silver/Silver Chloride (Ag/AgCl) disk and pellet electrodes featuring a pure silver wire embedded in the electrode matrix. Designed for electrophysiological recording and reference electrode applications, these electrodes are reusable, can be resurfaced, and do not require additional chloriding. Their essentially non-polarizable characteristics make them suitable for laboratory research applications
