FEATURES:

D360R-4 (4-Ch.) research alternative to D360 amplifier
AC-coupled, differential amplifier channels.
High-pass, low-pass and notch filters.
Gain range of x100 to x3,000,000.
Windows PC control software (32/64bit compatible)

The four channel D360R-4 has been designed to meet all of the electrical requirements of the medical electrical standard IEC 60601-1, including but not limited to:-

(i) full electrical isolation of the input circuit

(ii) meeting of or exceeding creepage and clearance minimum requirements

(iii) ensuring inputs are single fault condition safe.

Unlike the 8-channel D360, the D360R-4 is NOT a medical device and its use is limited to animal or human research applications.

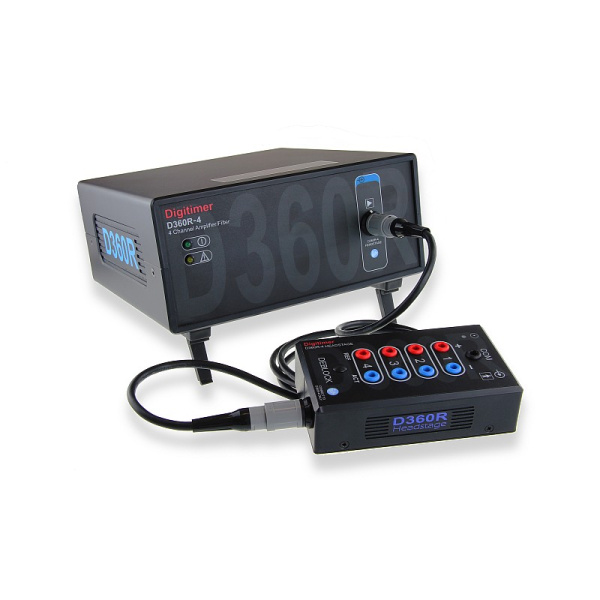

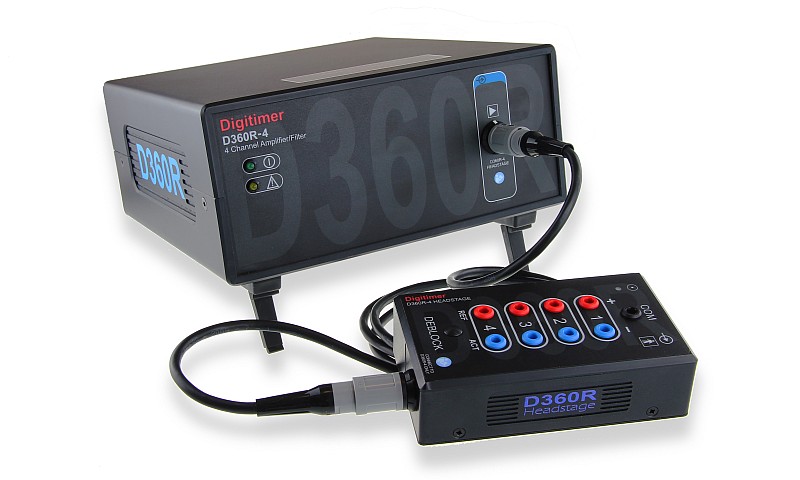

The D360R-4 comprises a main amplifier unit, a remote pre-amplifier headstage with 4 pairs of differential inputs (plus Common) and dedicated Windows-compatible Client Software.  The software provides a virtual front panel for the adjustment of settings, including low-pass and high-pass filters as well as amplifier gain. The pre-amplifier headstage is attached to the main amplifier via a fully detachable 2m long cable, which is easily replaced if it becomes damaged during use.
