FEATURES:
- Versatile TTL trigger source for our range of stimulators
- Precise digital control & PC GUI
- Single or two channel output
- Adjustable output voltage
- Free run, train or even repeating bursts

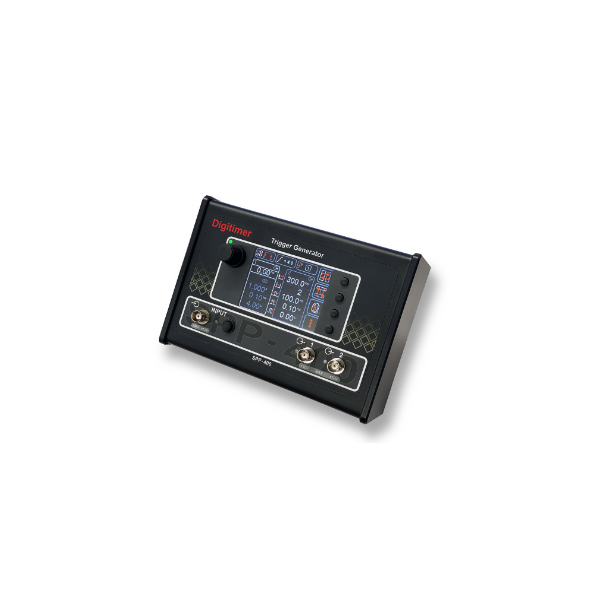

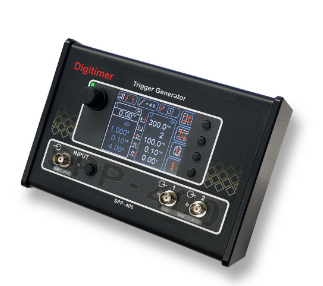

Currently in development, the NEW Digitimer SPP-400 Trigger Generator is a programmable digitally-controlled, single or two channel trigger source compatible with our range of electrical stimulators.
Like our DG2A Trigger Generator, the SPP-400 is cable of operating in multiple modes, including (i) Free Run (ii) Gated (iii) Single or (iv) Train. However, because the SPP-400 can be used as a single or two channel device, with the output of Channel 1 linked to the input of Channel 2, it can also produce repeating trains or bursts of pulses which would be impossible with a single DG2A.
The SPP-400’s digital controls allow users to precisely and reproducibly set the timing and output parameters they require. The SPP-400 also permits storage of up to eight pre-set protocols or configurations to the unit within the Protocol Manager for future recall.
Once available, the SPP-400 will be supplied with a Windows compatible virtual front panel GUI that will replicate the front panel display and controls, further enhancing ease of use.
