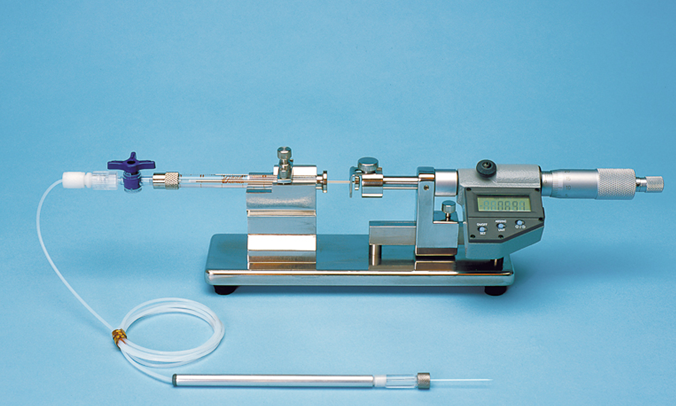

Precise manual injection of fluid using glass pipettes or similar injection devices
They can also be used as a manual micro syringe pump for perfusion or withdrawal of liquids
The resolution of the injection volume can be continuously varied from 10 nanoliters to the microliter range, depending on the syringe used
The system comes complete with a 100 µL gas tight syringe and other syringe sizes can be purchased
Example one revolution on the included 100 µL syringe is a volume of 0.835 µL (835 nL)
10 μL syringe - 0.0018 μL/div 25 μL syringe - 0.00416 μL/div 50 μL syringe - 0.012 μL/div 100 μL syringe - 0.0167 μL/div 250 μL syringe - 0.0417 μL/div 500 μL syringe - 0.0833 μL/div
| Advances Resolution |
0.001 mm for DMP and 0.01 mm for MMP |
| Syringe Size |
10 µL to 1 mL gas tight luer tip syringe |
| Tubing |
1.5 m of PTFE tubing with 0.5 mm ID |
| Pipette Holder |
0.24" x 5.2" |
| Pipette Holder Fits |
1.0 to 1.5 mm OD pipette |
