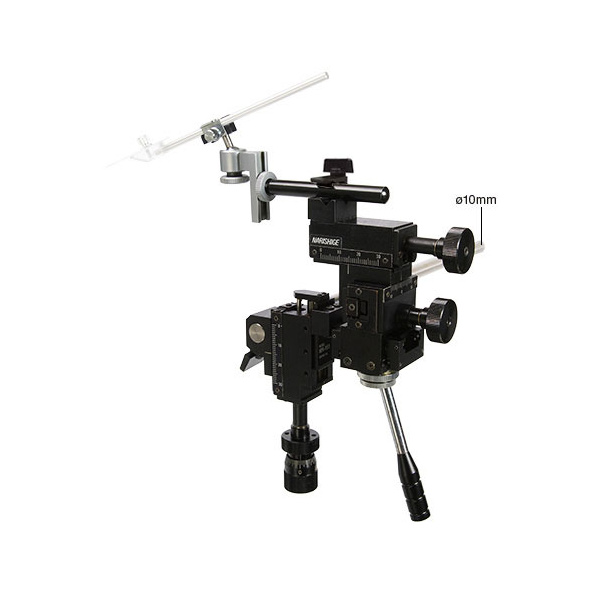

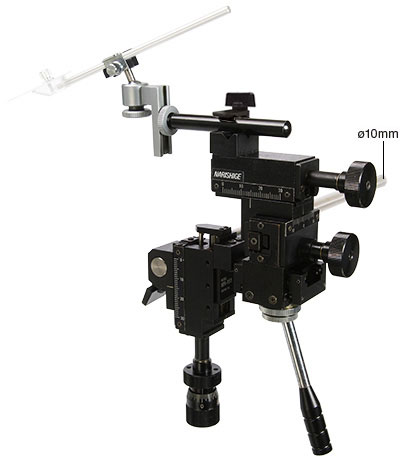

Light, compact, easy-to-operate manual manipulator with joystick.

Designed to be light and compact for diverse applications, this manual micromanipulator features joystick control for excellent operability. The joystick enables the micropipette to be freely controlled on the X and Y planes, and coarse movement is provided on the X, Y and Z axes. The Z-axis offers fine movement as well, making vertical adjustment both easy and accurate: used with the joystick, it also enables three-dimensional fine movement. A ball joint is attached so that approach angles can be set without interfering with the joystick operation. The model's versatility also extends to installation, with a bar mount system which allows attachment by either a magnetic stand or mounting adaptor

* For attachment to the microscope, P-1A height adjustment plate (sold separately) and a suitable mounting adaptor (sold separately) are required

* The ball joint included with the micromanipulator can be replaced by MMO-220A one-axis oil hydraulic micromanipulator (sold separately)

Specification

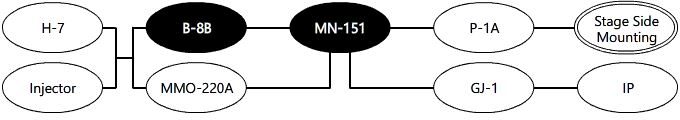

System Diagram
