Digital Drying Oven

Digital Drying Oven

(Aggregate & Rock Testing Equipments)

Standard: ASTM C127/C136 /D558/D698/D1559, EN 932-5/1097-5, BS 1377/1924

Drying Sample

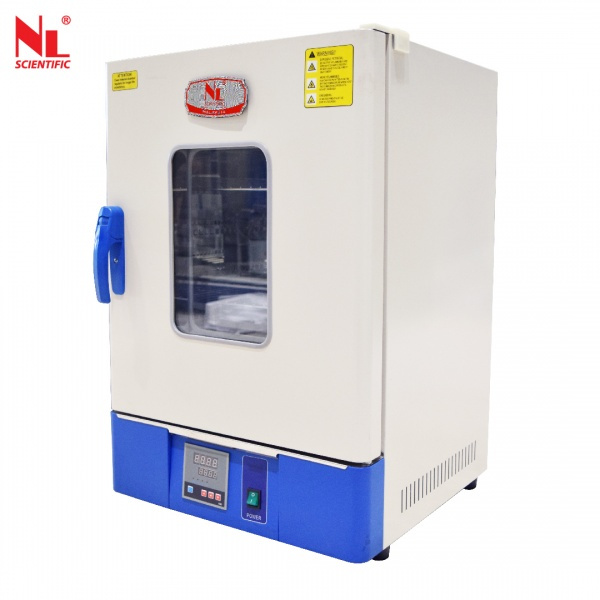

The Digimatic Control Drying Oven exterior is a general purpose laboratory used such as soil, concrete, asphalt and aggregate. Internal frame made of stainless steel sheet and external casing coated with hard wearing paint & insulated with thick mineral wool. Heat generated by high precision digital controller & temperature range from RT + 10。C to 250。C. All capacity come with fan circulation blower. The oven come with glass viewing door surrounding casing is obtained with 50 mm thick fiber glass & steel shelves.

Technical Specifications:

Model Number	NL 1017 X / 007
Capacity	65L
Voltage	220 V, 1 ph, 50 / 60 Hz
Temp. Variation	RT+10-250 °C
Temp. Fluctuation	±5.0 °C
Temp. Resolution	0.1 °C
Ambient Temperature	+5-40 °C
Heating Power	2.0 kW, 7.5 A
Interior Dimension L x W x H	400 x 360 x 450 mm
Exterior Dimension L x W x H	550 x 550 x 840 mm
Packaging Dimension L x W x H	610 x 610 x 905 mm
Load Per Shelve	25 kg / shelve ( c/w 2nos shelves )
Gross / Net Weight	47 / 61 kg
Timing Range	1-9999 min

*1 Copy of Manual Instruction
