Rate Of Spread NL 2014 X / 001

Rate Of Spread NL 2014 X / 001

Rate Of Spread
NL 2014 X / 001

(Bitumen & Asphalt Testing Equipments)

Standard: EN 12272-1 & BS 598-108

Spread Measure

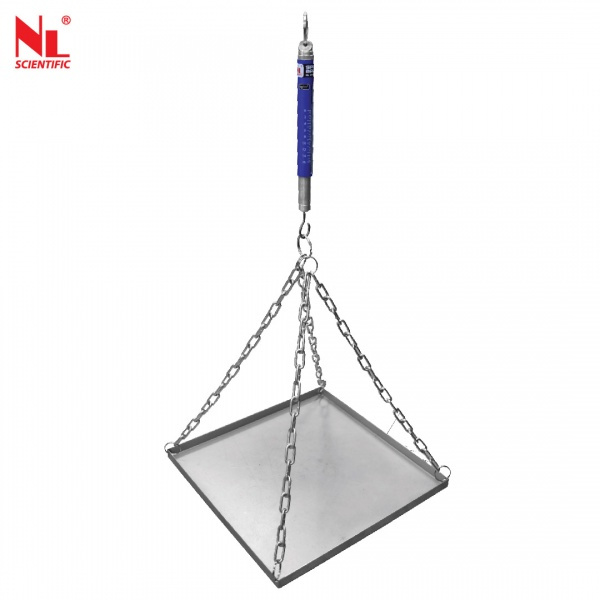

This simple equipment use to determine the rate of spread of binder on the surface of the road. The equipment consists of a metal 300 mm square tray, which can be lifted by means of four chains. The chains are attached to a balance and the rate of spread can be assessed by a balance

Technical Specifications:

Model Number	NL 2014 X / 001
Dimension of Tray	300 (L) X 300 (W) X 25 (H) - Internal
Strength Capacity	Up to 16 kg/m²
Readability	0.5 kg/m²
Max.Load	2.7 kg
Approx.Weight	5.7 kg
