The MED64 is a user-friendly multi-electrode array (MEA) system for stimulation and recording of field potentials (extracellular signals) from different areas within a biological sample over hours, days, weeks and even months

Acute or cultured biological preparations are placed or grown directly on a grid of 64 planar microelectrodes, which serve a dual purpose of stimulus-delivery and signal recording

Basic system suitable for all applications (Acute slices, Cultured cells, Slice cultures)

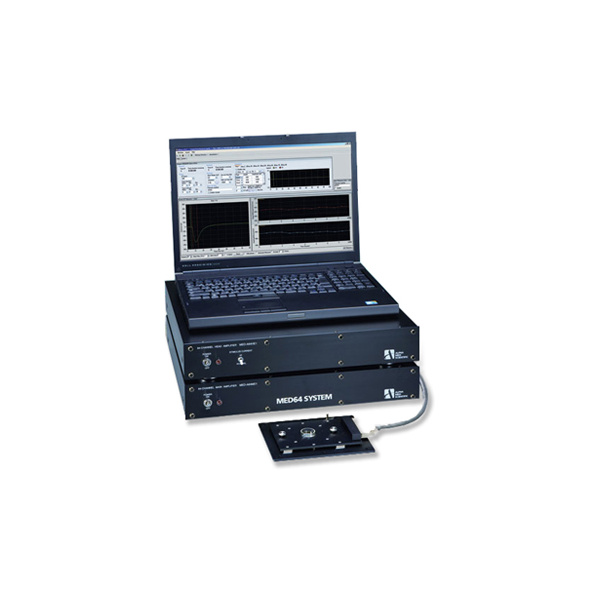

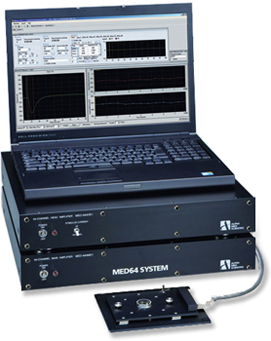

MED64-Basic System is user-friendly microelectrode array (MEA) system for in vitro extracellular electrophysiology

It features with the industry’s most sensitive MEA system, providing high-quality reliable data.Created by Panasonic, the MED64 has been on market for 20 years and has hundreds of users and publications worldwide

Features

• Acquire signal from 64 electrodes simultaneously
• Stimulation through any of the 64 electrodes (up to 2 electrodes simultaneously) using internal stimulator
• Unrivaled signal-to-noise ratio of 0.8 μV RMS noise level
• Record inside of a humidified incubator
• Large current-driven stimulation via any electrode
• High-quality evoked signal without interference of stimulus artifacts
• One system can be used for multiple experiments with its amplifier’s broad acquisition bandwidth and analog low pass/high pass filter
• Analyze data online during your experiment or offline after
• Suitable for acute slices, slice cultures, and cell cultures
• Low-cost upgrade to the MED64-Allegro or Quad II System

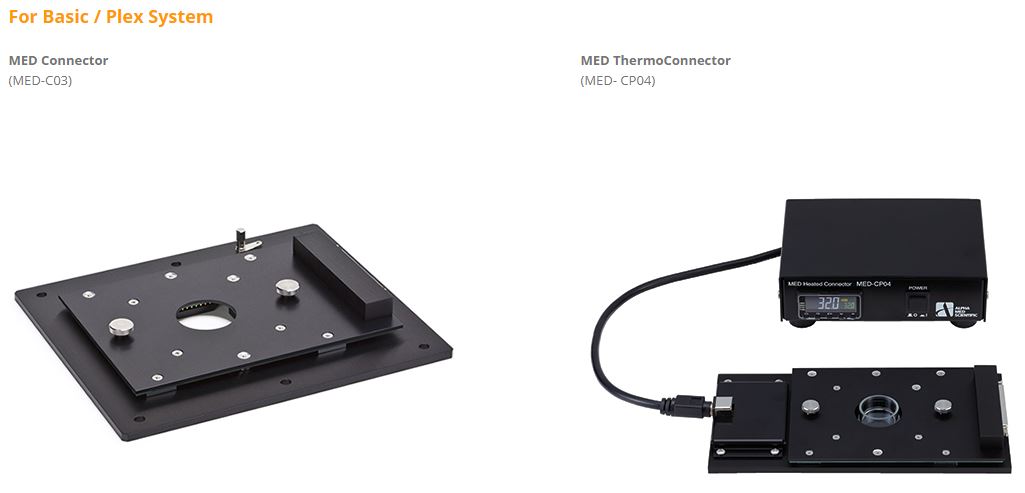

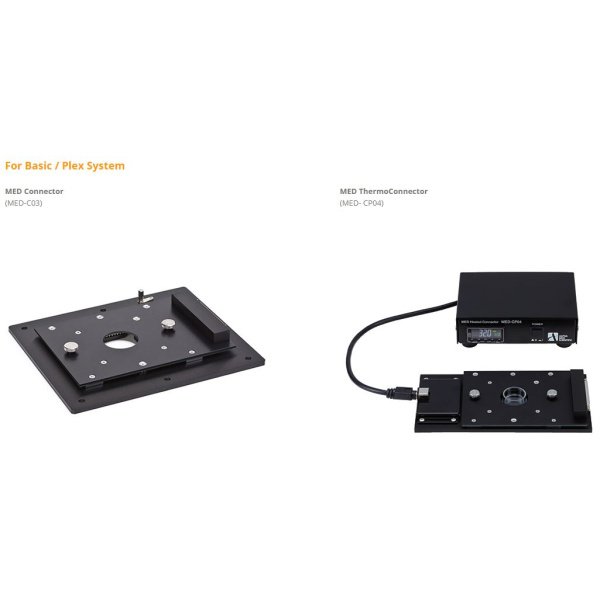

MED Connector

The MED Connector holds and connects the MED Probe (MEA) to the amplifiers

Thanks to the MED Probe’s lowest-impedance electrodes the MED Connector holding the MED Probe is connected to the amplifier with 2 m-long cable, that does not generate signal attenuation

This unique MED64 system configuration will provide the great flexibilities for your experiments
