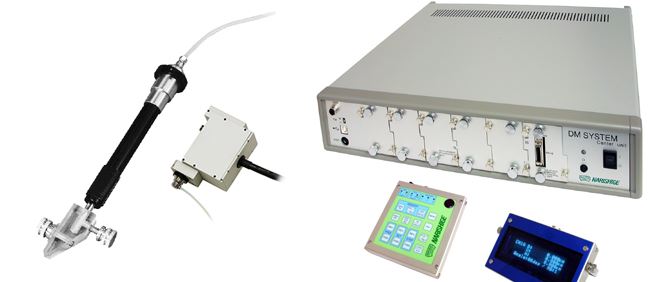

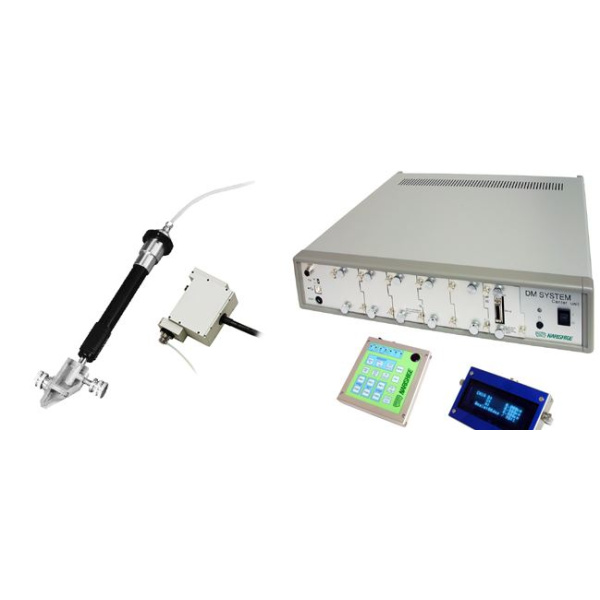

MO-82 (with Stepping Motor) One-axis Oil Hydraulic Micromanipulator NARISHIGE

The Combined Use of a Stepping Motor and an Oil Hydraulic Drive Enables the Accurate Positioning of a Microelectrode

Used in combination with the DM System, the MO-8, MO-10 Pencil-type Micromanipulator which is easily mountable onto a mechanical manipulator or stereotaxic instrument, ensures even more accurate drive control

The Motor Drive incorporates a 5-phase stepping motor that enables higher precision of fine movement operation. With the working distance of 10 mm, the insertion of a microelectrode can be achieved without unwanted vibration

The Adoption of Multi-slot CardBus Reader Allows Additional Drive Units

Based on the DM System, control boards are expandable thus up to three Drive Units can be controlled by one Control Box and one Keypad Controller

Coordinate Calculation

This function enables the user to set an arbitrary position as a reference point and the display is capable of showing the distance traveled from the set reference point. Position measurement system saves you the inconvenience of calculating the distance traveled, during and after each experiment

Equipped with Diverse Functions to Support Various Experiments

Three driving modes: Free Drive / Set Drive / Step Drive are user-selectable and the respective minimum movement units are user-definable

Keypad Controller

Easy-to-operate sheet keys are used for the Keypad Controller.
