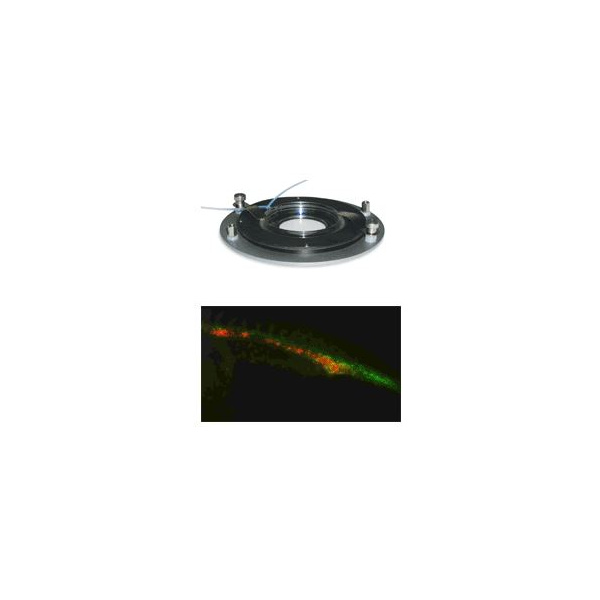

This heater is for 50 mm glass bottom dishes
Optical clearance is 40 mm or 28.5 mm. Can be used with smaller chambers and 35 mm dishes, if combined with reducing adapter-rings
Requires a microscope adapter, specify microscope model when ordering
Can be used with an optional temperature probe holder, to position inside the dish
|
Specifications:
|
|
Dimensions:
|
76 mm diameter
|
|
Temperature stability:
|
0.01°C, required for sensitive applications: nano / piezo positioning, confocal imaging for example
|
|
Optical clearance:
|
40 mm or 30 mm
|
|
Use with:
|
50 mm dishes, Petri dishes, including 35 mm glass bottom dishes
|
|
Solution Pre-heater:
|
Replaceable / Removable PTFE tubing, easy to wash. Can be replaced with any soft tubing with O.D. up to 2.3 mm
|
|
Microscope adapter:
|
Fits to 74 mm cutout of standard microscope adapters
|
