This fourth generation of precision stereo zoom microscopes uses modular, two parallel beam path design and high quality optical system

The advanced optical design with planachromatic objectives provides sharp and distortion-free contrast image throughout the entire zoom range and comes with an impressive 5-year warranty

The microscope offers planachromatic objectives the ensure no optical distortion. It has a large zoom ratio of 8:1, and a large zoom range of 0.62x - 5.0x whith step and continuous zoom

Benefits:

• High-contrast imaging, ideal for observing transparent, low-contrast objects
• Long working distance option available

Applications:

• Integrated optical and biological research

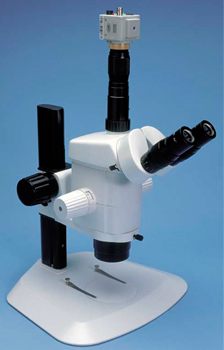

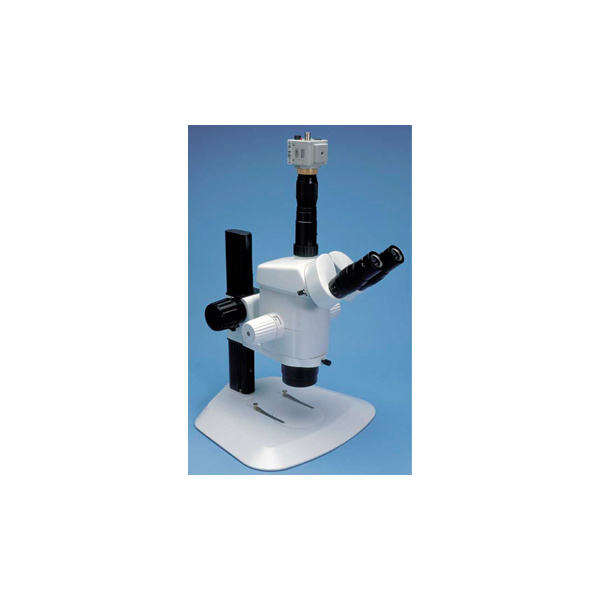

The PZMIV is available in a binocular or trinocular version. In addition, an extensive list of optional accessories is available that makes the PZMIV suitable for integrated optical and biological research.

The microscope comes with a track stand, standard 10x eyepieces (wide-field, distortion-free and high eye point), 1x planachromatic distortion-free objective

See the specification tables marked areas for more details. On trinocular versions of the microscope with the LWD option, the camera view is nearly the same as the eyepiece visual field of view

The trinocular version is a true trinocular, with continuous operation of both eyepieces and photo tube simultaneously. There is no need to block the right eyepiece to use the photoport

Features:

• Modular, two parallel beam design
• Planachromatic objectives, no optical distortion
• High-contrast imaging, ideal for Observing transparent, low-contrast objects
• Large zoom ratio: 8:1
• Large zoom range: 0.62x to 5.0x
• Long working distance
• Step and continuous zoom
• 5-year warranty
