Programmable Teleopto

If you want to optogenetically stimulate long term with fixed stimulation period, the infrared communication in regular Teleopto consumes electrical current and limits the battery life

To avoid this, we implemented a non-volatile memory in the receiver for storing stimulation pattern in advance, thus infrared communication is not required and the battery life is significantly extended

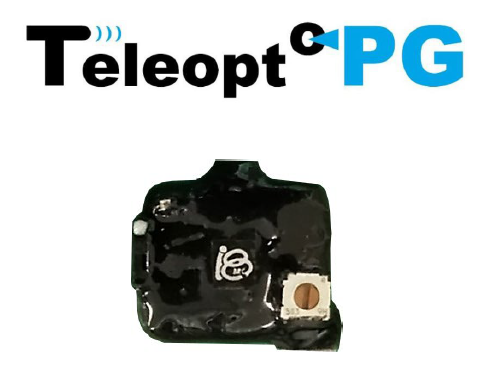

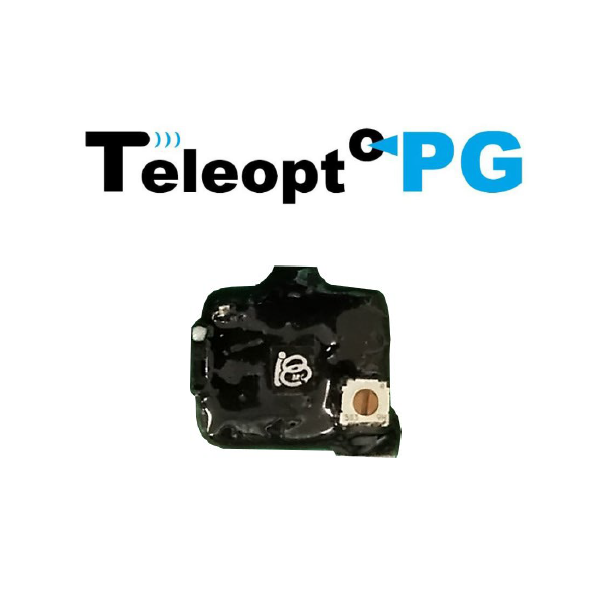

This is the Teleopto PG

It consists of a receiver, a programmer and a software. Before starting experiment, you can program the internal memory by connecting the receiver to the programmer, designing the following parameters in the software - Period, Pulse Width, Pulse Interval, Number of Pulses, Repeat Interval and Number of Repeats

The receiver can retain the parameters even though the power switch is turned off, starts the programmed stimulation each time it is turned on

The regular Teleopto cannulas are compatible with the TeleoptoPG

- Internal memory retains the programmed stimulation pattern
- 100 days of standby time (50 times longer than regular Teleopto)
- Suitable for long term stimulation with fixed period

Teleopto PG Software

TeleoptoPG-set contents:

TelePGR 1x TeleoptoPG Receiver
TelePGP 1x TeleoptoPG Programmer
TeleCharger 1x Teleopto Charger
TeleTool 1x Insertion Tool
TeleDummy 1x Dummy Receiver
3x any Teleopto cannula
1x TeleoptoPG Software
