Micromanipulator specialized for DNA injection, moving in the same direction as the pipette.
When using this unit to insert a pipette into the cell, operators can make further movement in the same direction, which minimizes the chance of damaging the cell. This one-axis oil hydraulic manipulator meets that requirement and can also be used as an add-on manipulator. 1mm of movement range per knob rotation is useful for the samples with a few hundred of µm to a few mm under the stereomicroscopes. A compact drive unit is installed on the tip of the ball joint, can be used with any three-dimensional manipulators

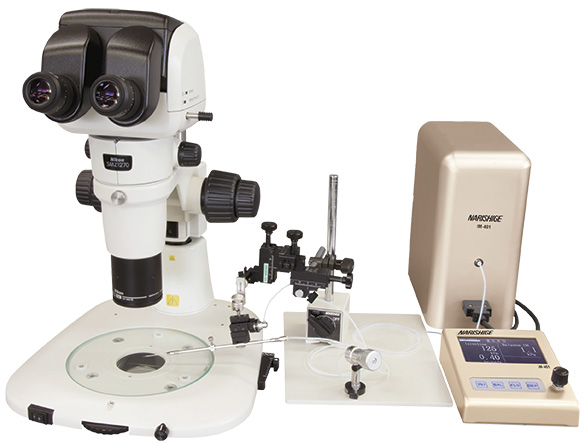

Setting example
 |
|
DNA injection set (IM-401 + MMO-220C + M-152 + GJ-1 + IP)
|
* A compressor or cylinder (air, nitrogen, etc.) + regulator are required to use the IM-401
Specification
| Movement range |
Coarse |
10 mm
Full rotation of knob 1 mm
Minimum graduation 20 µm |
| Dimensions/Weight |
Control unit |
W55 × D45 × H80 mm, 140 g |
| Drive unit |
W45 × D20 × H35 mm, 90 g |
| Hydraulic tube length |
0.9 m |
* MMO-220A (Full rotation of knob 250 µm) is also available
