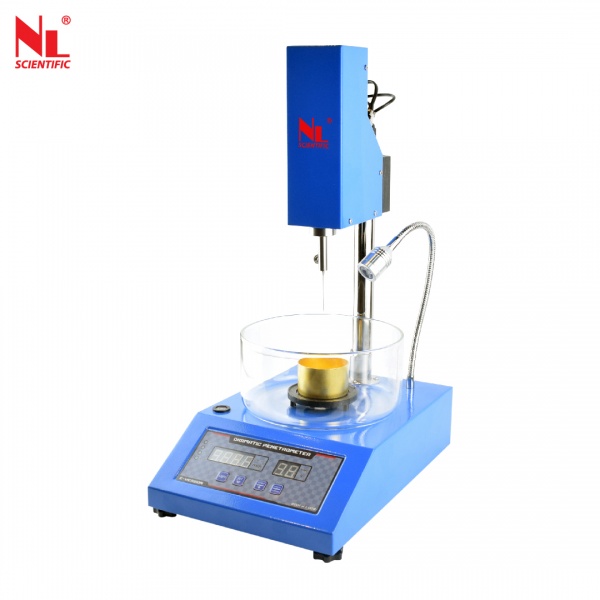

Digimatic Penetrometer (E-Version) NL 2001 X / 008

Digimatic Penetrometer (E-Version) NL 2001 X / 008

Standard: EN 1426, ASTM D5, AASHTO T49

Penetration of Bituminous Materials

Newly invented instrument for determine the consistency of sample from the depth penetration thru penetration needle under standard load condition.

FEATURES:-
*Light weight with compact design
*Automated record penetration result
*High accuracy using digital measuring device
*Enable auto or manual test operation
*LED lighting stand
*Levelling bubble & vertical fine adjustable knob
*Simple & quick operation

Technical Specifications:

Model Number	NL 2001 X / 008
Penetration Depth & Displayed Unit	40 x 0.01 mm
Spindle Weight	47.5 ± 0.05
Product Dimension (mm)	215 (L) x 320 (W) x 475 (H)
Packing Dimension (mm)	235 (L) x 340 (W) x 500 (H)
Approx. Product Weight	6 kg
Approx. Packing Weight	7 kg
Power	220 ~ 240 V, 1 Ph, 50 / 60 Hz
