Specifications:
|
|
Valve Fitting:
|
Luer-locks
|
|
Remote control:
|
Wireless
|
|
Manifold:
|
8-channel, can be reduced down to 1-channel
|
|
Height:
|
up to 3 ft. adjustable, for gravity driven solution flow
|
|
Solution cylinders:
|
60 ml x8 syringes
|
|
Tubing:
|
100 ft. polyethylene tubing, fits perfusion manifold directly;
50 ft. Tygon tubing, fits provided barbed luer connectors for syringes
|
|
Tubing Fitting:
|
barbed luer-locks and ferrule-type to connect to solution cylinders and between Tygon & polyethylene tubing
|
|
Anti-vibration mounting:
|
a. 1x1 ft. stand,
b. magnetic stand,
c. M8 threaded surfaces
|
Designed for animal physiology and cell research applications
Easy to use solenoid valves with luer fitting. Wide orifices will maintain high flow rates. The system comes with manifold that fits to perfusion chambers for cultured cells/tissue slices, Petri dish and oocytes. Includes soft Tygon, polyethylene tubing and fitting to connect to pinch tubing. Includes 60 ml syringes / reservoirs. Includes easy disconnect luer fitting for tubing and included syringes
Compatible with data acquisition and imaging systems, compatible with LabView, MatLab, pClamp, IPlab, PatchMaster, Metamorh, MetaFluor
Sample publications

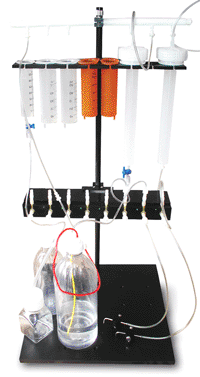

The included unique modular stand provides vibration-free operation and includes both a stand and a small magnetic base. The magnetic base does not take a lot of space from your set-up, but allows to position perfusion solutions near your sample. The post consists of 0.5 in. O.D., 1 foot long aluminum parts and can be extended to 3 feet high. An 1.5 in. floweret head screw will fix the syringes on the post, making a traditional syringe holder. Comes with 60 ml syringes, stop-cocks, and fitting. The holder can be also mounted on threaded M8 surfaces
Complete 16-Channel Pinch Valves Perfusion System
To form a 16-channel setup, this system includes two sets of the above parts, included with the 8-channel system, which can be operated by the same 16-channel controller
16-channel valve controller
Both system come with a 16-channel controller. The controller opens valves through
- manual buttons
- wireless remote control
- optically isolated digital or TTL signals generated by a computer or other equipment
- analog signal
- RS232 port (or USB connection) for software control
The controller can operate in AUTO Memory mode, to program timers and channels sequences for precise timing during manual operation;
INHIBIT mode with manual and external controls allows you to switch all channels OFF at once, if required
The controller has an option for valves control by Binary Encoding using only 2-4 digital inputs, in case if a limited number of digital outputs are available in your system. The RS232 port allows automation of solution switching and integration with data acquisition and imaging systems
ANALOG output can be configured to monitor channel switching during manual operation
SET output is used to switch an outflow unit ON automatically every time perfusion is ON
RS232 port allows software control by any imaging or data acquisition setup. Can be upgraded to USB / RS232 adapter
|
Specifications (controller):
|
|
Channels:
|
16
|
|
Controls:
|
optically isolated digital signals and TTL, Analog input, RS232 software command
|
|
Manual Overdrive:
|
Manual touch-pad switches, override electronical inputs
|
|
Remote control:
|
Wireless
|
|
Auto Memory:
|
To program timers and channels sequences for precise timing during manual operation
|
|
Code mode:
|
Use only 4 TTL inputs to encode all channels
|
|
Close mode:
|
Inhibits all outputs to the valves, manual and electronical inputs
|
|
Analog and SET outputs:
|
To switch outflow units CFPS-1U and for telegraph output
|
|
Custom modifications:
|
Additional features can be added or modified on request
|
|
Dimensions:
|
2.5 x 12 x 9 in.
|
|
Power:
|
120 / 240 VAC
|
