Crack Detection Microscope Meter NL 4027 X /

Crack Detection Microscope Meter NL 4027 X /

Concrete Crack Detector

Simple yet useful instrument for measuring crack width in concrete and other materials. This high definition microscope operates with an adjustable light source powered by batteries provides a well illuminated scale under all working conditions. Supplied in a convenient sized carrying case

Technical Specifications:

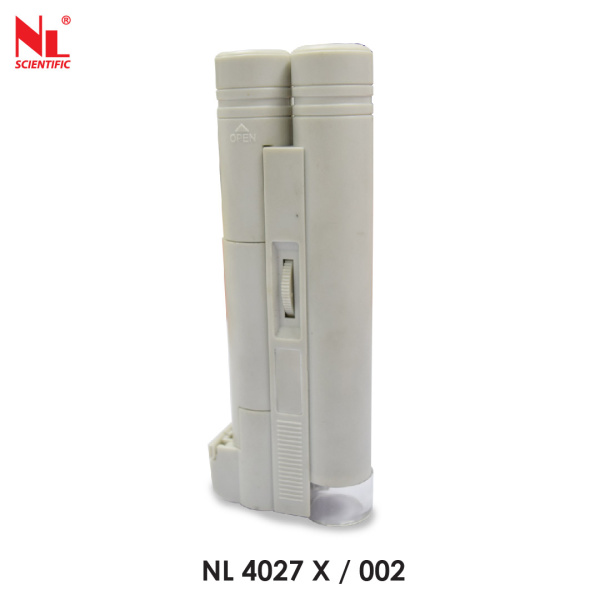

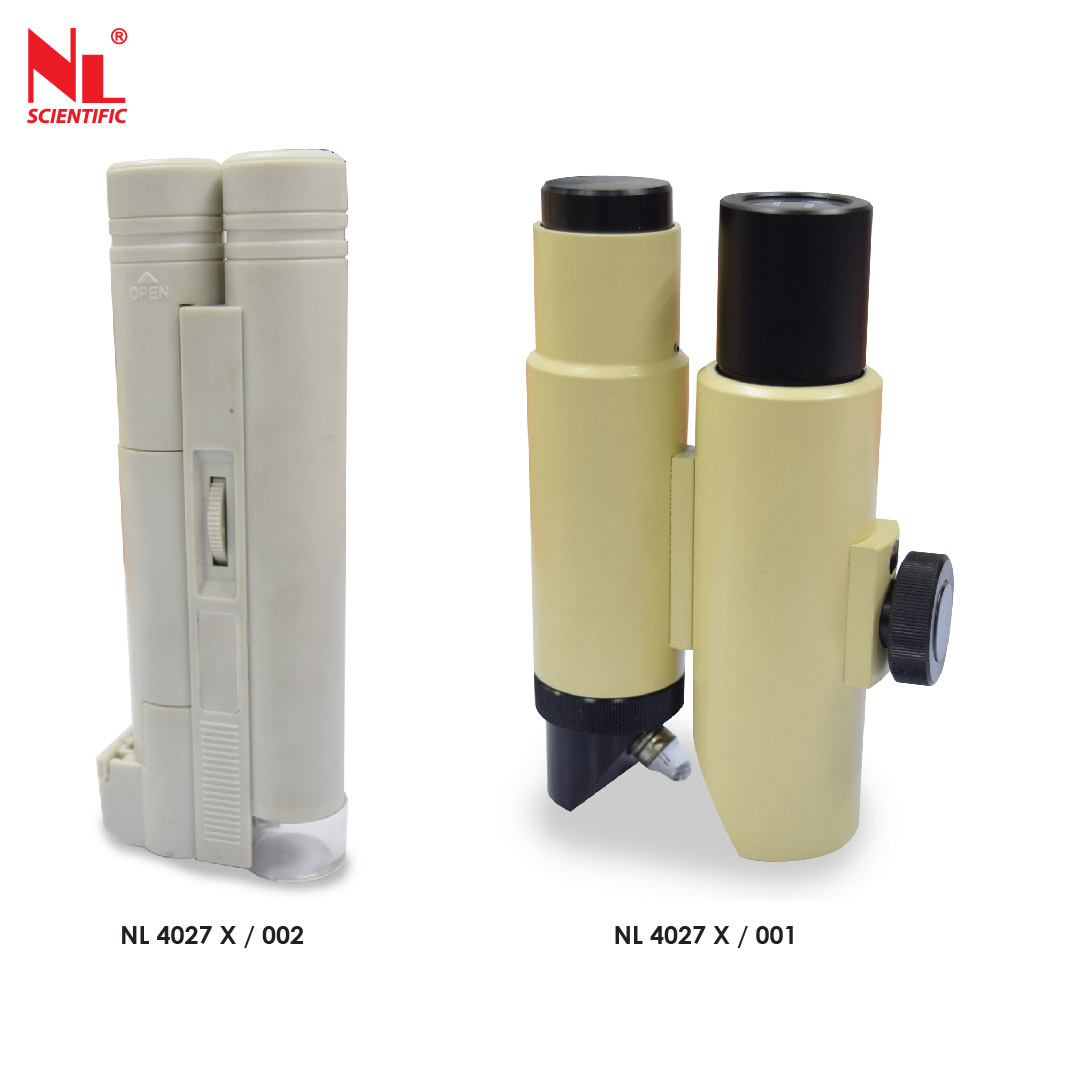

Model Number	NL 4027 X / 001	NL 4027 X / 002
Alternate Code	-	MG 10085-1
Magnification	35 Times	40 times
Scale	4 mm x 0.02 mm per division	4 mm x 0.05 mm per division
Dimension (LxWxH) (mm)	40 x 90 x 150 (case)	150 x 50 x 30
Approx. Weight	600 g	200 g
