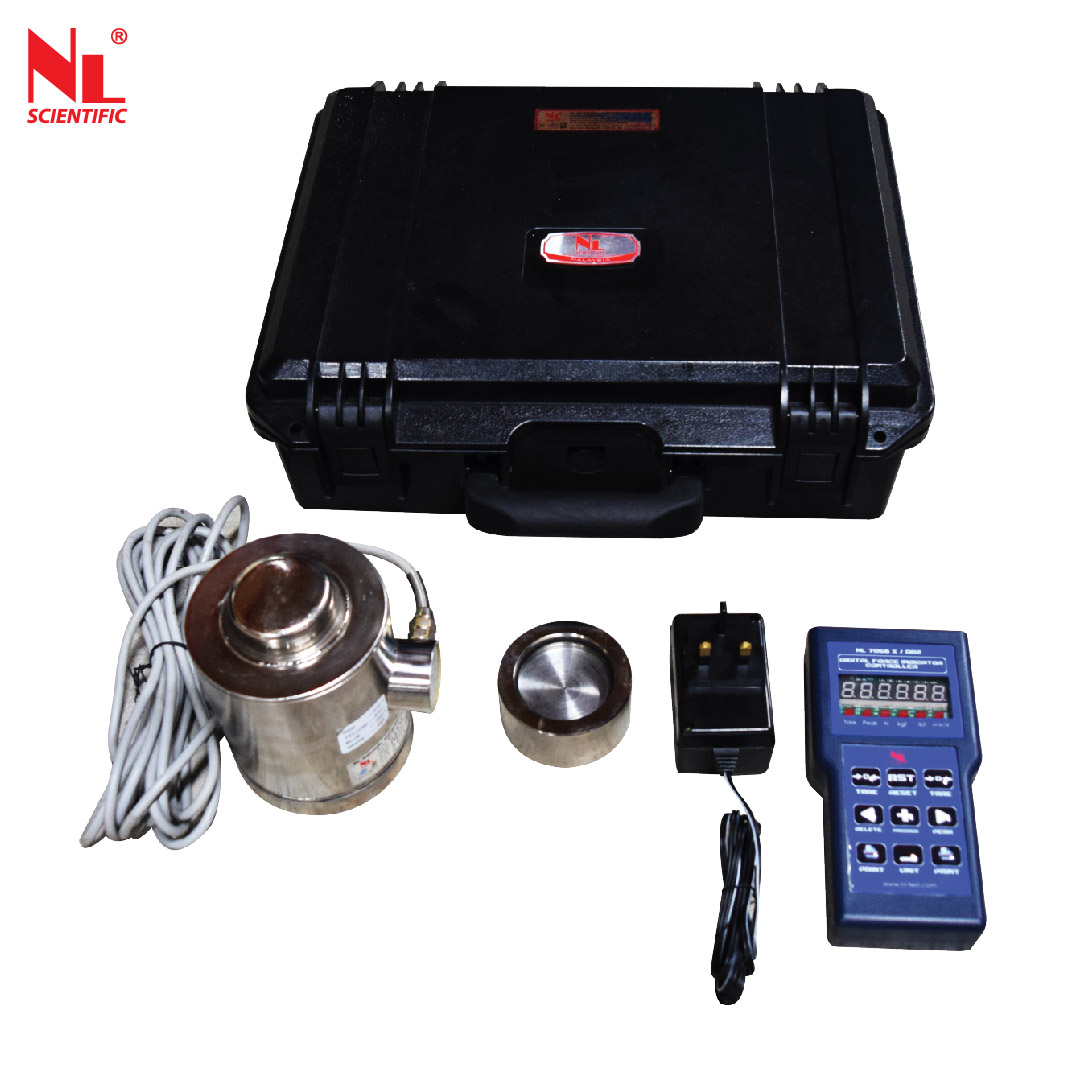

Digimatic Load Cell NL 4031 X / 002

Digimatic Load Cell NL 4031 X / 002

Load & Force Verification

The load cell is suitable for the calibration of compression testing machine. It consists of high quality steel block, named sensitive element, where strains have been fitted: the whole is housed in sheathing. While the load is applied, strains are transmitted to an amplifier which gives a load digital reading

Technical Specifications:

Model Number	NL 4031 X / 002
Capacity	2000 x 0.01 kN
Load Cell Dimension (mm)	Ø130 x 170 (H)
Working Temp.	0 - 45°C, Moisture ≤ 80% RH
Accuracy	Class ±1 %
Approx. Weight	19 kg
Power	Nicd AC Adaptor as charging source
