Mortar Prism Flexural Device NL 3027 X 002 - P001 & P001A

Mortar Prism Flexural Device NL 3027 X 002 - P001 & P001A

Cement Compression & Flexural Testers

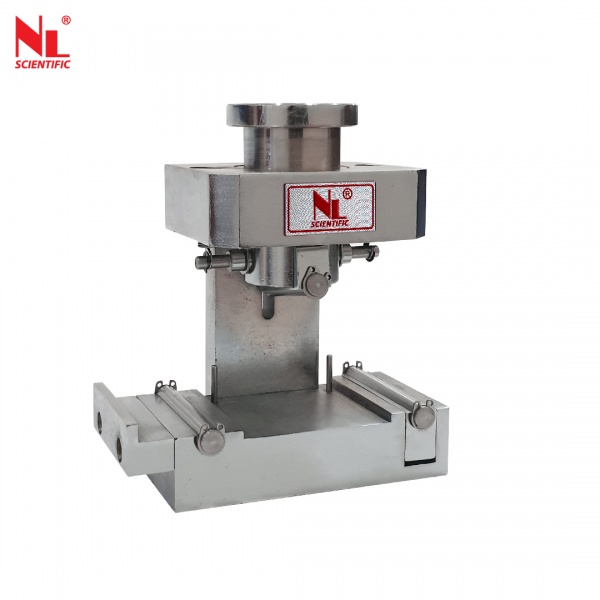

For flexural testing on 40.1 x 40 x 160 mm specimens. Made of steel. Two lower bearers with 100 mm span (EN) & 120 mm span (ASTM) upper longitudinal self-aligning bearer fitted to ball setting.

Technical Specifications:

Model Number	NL 3027 X / 002 - P 001	NL 3027 X / 002 - P 001A
Standard	EN 196/1, EN / ISO 679	ASTM C348
Specimen Size	40.1 x 40 x 160 mm	40.1 x 40 x 160 mm
Span Dimension	100 mm	119 mm
Dimension (mm)	160 (L) x 88 (W) x 169 (H)	160 (L) x 88 (W) x 169 (H)
Approx. Weight	5.6 kg	5.6 kg
