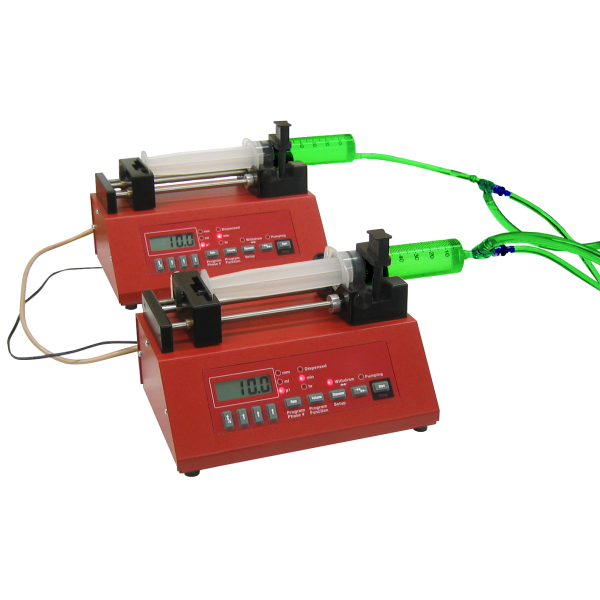

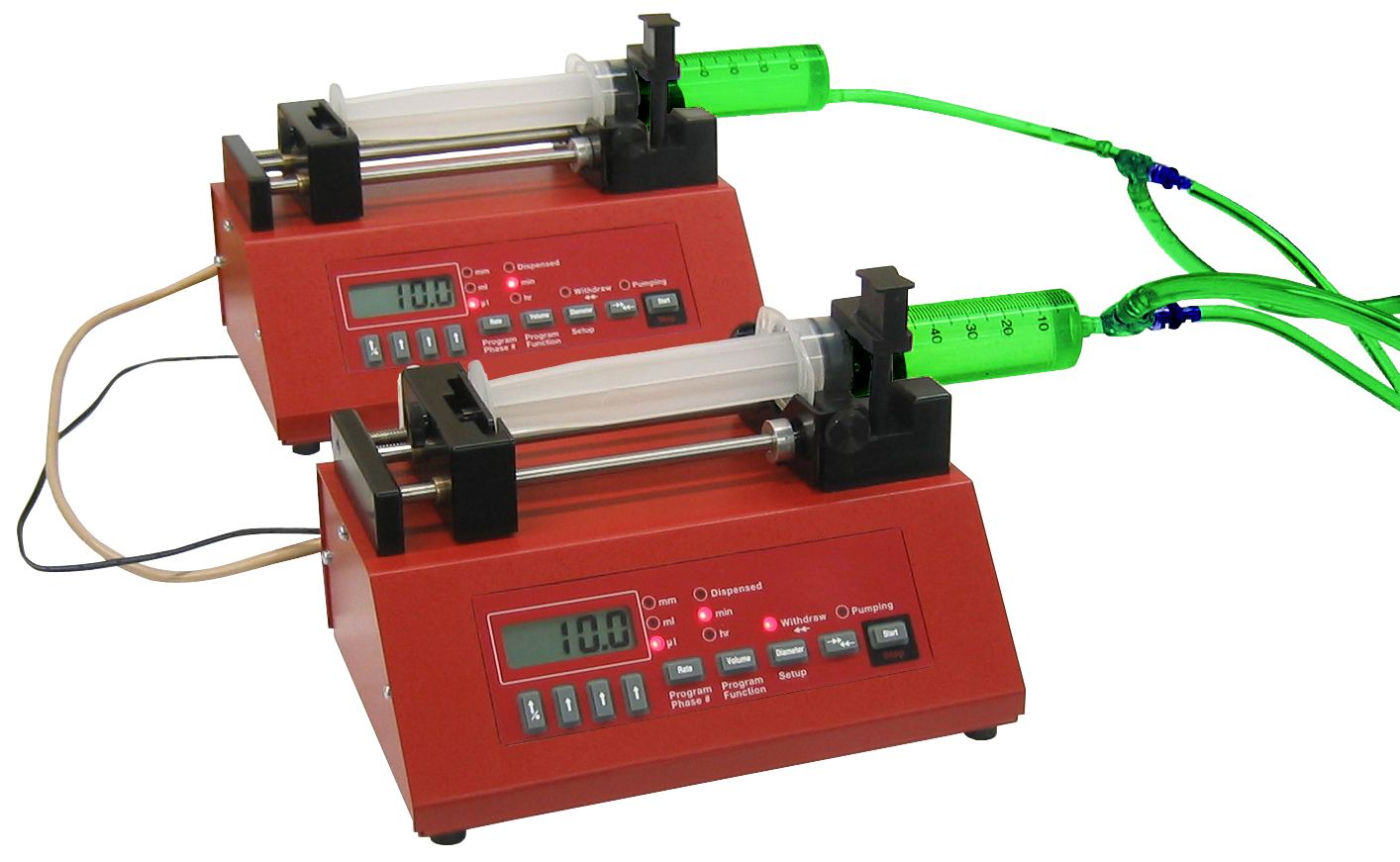

NE-1000 Dual Continuous Infusion / Dual Syringe Pump

Order this product from our e-shop (click here)

• Holds 2 syringes up to 60 cc
• Continuous infusion mode allows one pump to infuse as other withdraws
• Dual pump mode allows for simultaneous operation with one pump mirroring the second pump
• Infusion rates from 0.73 µL/hr (1 cc syringe) to 2100 ml/hr (60 cc syringe)
• Easy-to-use keypad interface
• Includes all the advanced functions and programming features of the NE-1000 family
• Pictured Syringe is for Demonstration purposes only

Features Exclusive to Dual Pump System:

• Utilizes specialized dual pump sync cable kit to synchronize both pumps, a command on one pump will update the other on the fly
• Includes: 2 NE-1000 programmable single syringe pumps, sync cable kit, two manuals, and two power supplies
• Disconnect the cable kit and you have two independent syringe pumps

Features:

• Built for automation
• Operates stand-alone or from a computer
• Infusion and withdrawal
• Set a single pumping rate and / or dispensing volume
• Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
• Network, control, and monitor up to 100 pumps with one computer
• Worldwide power supplies available
• Motor stall detection
• Dispensing accuracy of +/- 1%
• Unlimited lifetime technical support
• Two year warranty

DUAL-NE-1000X  Eliminates Flow Rate Pauses & Drop-Offs

The DUAL-NE-1000X Continuous Pump System eliminates the problem of flow rate drop-offs and pauses found in Push-Pull syringe pump systems. With Push-Pull systems, one syringe infuses, while the other refills, then they switch directions. This switch of directions causes a delay in flow while the syringes are primed

The DUAL-NE1000X Continuous Pump System solves the inconsistent flow rate problems of push-pull pumps

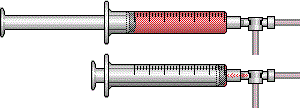

How it works:
The refilling syringe pump fills the syringe at a faster rate than the infusing syringe pump infuses, giving it time to prime the syringe after the syringe is filled, or even overlap the infusion to create a seamless transition between syringes

The smoothness of the transition between syringes can be fine tuned by adjusting the infusion rate, refill rate, priming rate, prime volume and overlap volume parameters

Description:

•Two single syringe pumps, each pump holds 1 syringe up to 60 cc, or 140 cc partially filled.
•Infusion rates from 0.73 µL/hr (1 cc syringe) to 2100 mL/hr (60 cc syringe)
•Includes all the advanced functions and programming features of the NE-1000 family
•Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.
•Dual Pump Plumbing Kit, the syringes and plumbing (sold separately, see below), complete the continuous system.
•Easy-to-use keypad interface

Not for clinical use on humans

Example Flow Rates for the DUAL-1000:
