Description:

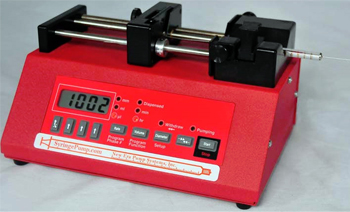

• The smoothest microfluidic syringe pump on the market (Compare our advance per step with the competition and discover for yourself)
• Holds 1 syringe up to 60 cc*
• Advance Per Step: 4.252232 Nanometers
• Infusion rates from 8 pl/hr (.5 µl cc syringe) to 2545 µl/min (140 cc syringe)
• Available in Double Syringe (NE-4002X) version
• Easy-to-use keypad interface
• Space Saving Chassis: Foot print size of only 5 3/4" x 8 3/4"

Won't take up unnecessary space on your laboratory or production bench

• Includes all the advanced functions and programming features of the NE-1000 family
• Includes the X Upgrade Smooth Linear / Gradient increasing and decreasing pumping feature
• Disposable, Glass, Stainless Steel Syringes and Plumbing Supplies are sold separately.

Special Application: Continuous Infusion (Push-Pull) and Dual Syringe Pump

Using 2 NE-1000 pumps attached with a cable, one pump will infuse while the other pump refills or have simultaneous infusion

Features:

• Fully programmable; automation capable
• Operates stand-alone or from a computer
• Infusion and withdrawal
• Set a single pumping rate and / or dispensing volume
• Program up to 41 pumping phases that change pumping rates, set dispensing volumes, insert pauses, control and respond to external signals, sound the buzzer
• Network, control, and monitor up to 100 pumps with one computer
• Worldwide power supplies available
• Motor stall detection
• Dispensing accuracy of +/- 1%
• Unlimited lifetime technical support
• Two year warranty

Not for clinical use on humans

Example Flow Rates: NE-1002X & NE-4002X (2 Channel)

NE-1002X

Sample syringe configurations, can hold any size syringes below 60 mL.
Maximum syringe size: 140 mL, partially filled to about 120 mL

NE-4002X

Sample syringe configurations, can hold any size syringes below 60 mL.
Maximum syringe size: 140 mL, partially filled to about 120 mL
