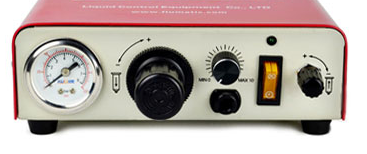

NE-7000 Adhesive Dispenser

  • Comes with power cord, foot pedal, hand switch, PU tube, syringe stand and operating manual
  • Adhesive is pushed through air pressure (User must supply own air)
  • Popular applications include dispensing adhesive, glue, cyanoacrylates, silicone, RTV, anaerobic resin, epoxy, UV cure formulations and many more fluids

Features:

  • Has an analog timer with a knob
  • Manual or Timer Operation Modes
  • Foot Pedal or Finger Switch Controlled
  • Programmable Timer 0.01 - 31 seconds
  • Suck-Back feature ensures no dripping
  • Designed for wide range of applications
  • Complete with dispensing accessories
  • Vacuum controlled for thin fluids
  • Two year warranty
Dimensions 195 mm x 216 mm x 60 mm
Dispensing time 0.001 to 31 sec +/- 0.1%
Operation Modes Manual, Timer
Cycle Speed > 600/m
Control Mode Foot Pedal / Finger Switch
Standards CE Approved
Air input 80 - 120 psi
Air output 1-100 psi
Voltage 110VAC / 220VAC
Internal Voltage 24VDC
Consumed Power < 15W
Working Conditions +5°C to +40°C (41°F to 104°F)
Weight < 3 Kg (3.3 lbs)
