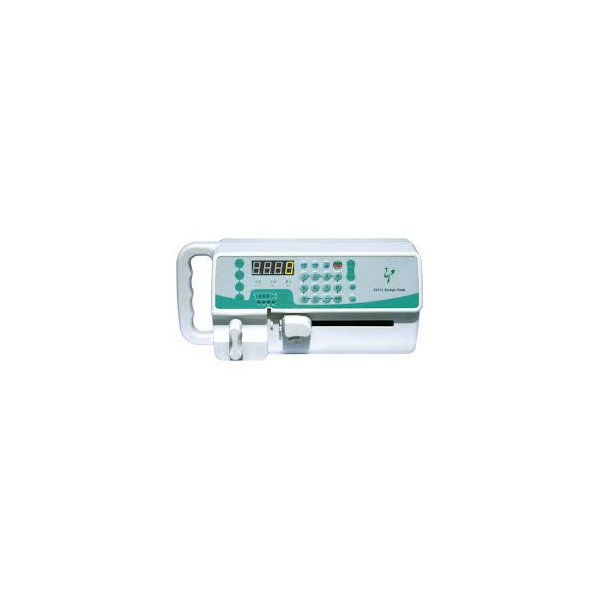

Human FA-313 Syringe Pump

* User friendly, easy and customized operation
* Double MPU to ensure system security
* Manual bolus but automatical antibolus to increase patient safety
* Automatically recognize the syringe type--10 ml / 20ml / 30 ml / 50 ml / 60ml, any brand after calibration
* Up to 8 hours battery back up for single channel at the rate of 5ml/h, 6 hours for double channel, 4 hours for four channel

• Channel Single
• Compatible syringe 10 ml, 20 ml, 30 ml, 50 / 60 ml
• Infusion rate - 0.1-400 ml/h, (50 ml / 60 ml)  ....... 0.1 - 99.9 ml/h (10 ml)
• Purge rate / bolus rate / top
  infusion rate: 400 ml/h; (50 ml /60 ml) ...... 200 ml/h; (20 ml / 30 ml) ..... 99.9 ml/h (10 ml)
• Volume limit 0-999.9 ml, Step by 0.1
• Accuracy ± 2 %
• Infusion step by  0.1 ml /h
• Visible & audible alarms - Syringe dislocation,Occlusion, Near empty, Pause overtime, Low battery, VTBI completion, Power cord falling off, Malfunction, Incorrect syringe type,
  Electrical circuit jam
• Occlusion pressure: high - 20 ml \ 30 ml \ 50ml \ 60 ml Syringe Spec: 90 kPa ± 30k Pa;
  10 ml Syringe Spec: 100 kPa ± 30 kPa
• Occlusion pressure: low: 20ml \ 30ml \ 50ml \ 60 ml Syringe Spec: 50 kPa ± 30 kPa;
  10 ml Syringe Spec: 70kPa±30kPa
• KVO rate: 0.1 ml/h ±0.02 ml/h
• Power  AC: 100V-240V 50Hz/60Hz DC: 12V
• Pause overtime alarm - 1 min 50s — 2 min
• Applied standards ISO 13485 & CE Certified
• Dimension 290 mm (L)*130 mm (W)*130 mm (H)
• Weight  2 Kg
