Digital Pull Off Tester 25kN (Bond Strength) NL 4016 X / 004U

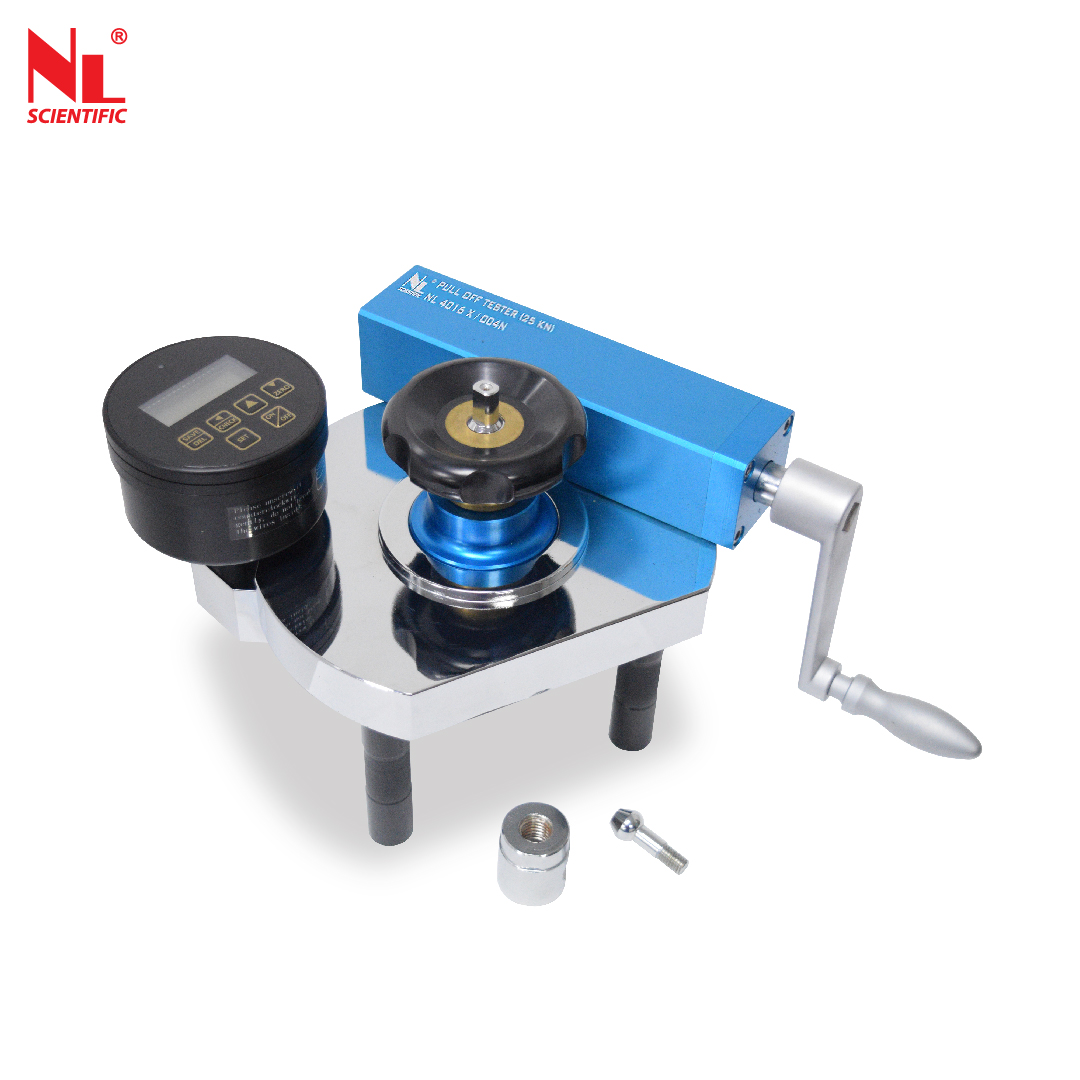

Digital Pull Off Tester 25kN (Bond Strength)

Digital Pull Off Tester 25kN (Bond Strength) 2

Digital Pull Off Tester 25kN (Bond Strength) NL 4016 X / 004U

Standard: EN 1542, EN 1348, EN 1015-12, ASTM C1583

Bonding Strength Evaluation

Used to determine the bonding strength of concrete overlay adhesion. Also suitable for measuring the strength of applied coatings such as plastic, mortars, plasters, tiles, bituminous coats as well as paint & other coatings on metal. It tests at any measuring point on the component, without requiring specimen preparation. However, a suitable depth of coring diameter same as the test disc is prepared prior to pulling off the surface bonding. Supplied without accessories
ACCESSORIES NEED TO ORDER SEPARATELY

Technical Specifications:

Model Number	NL 4016 X / 004U
Max. Load Capacity	25 X 0.001 kN sensitivity
Accuracy & Repeatability	≤1.0% F.S
Piston Travel	8 mm

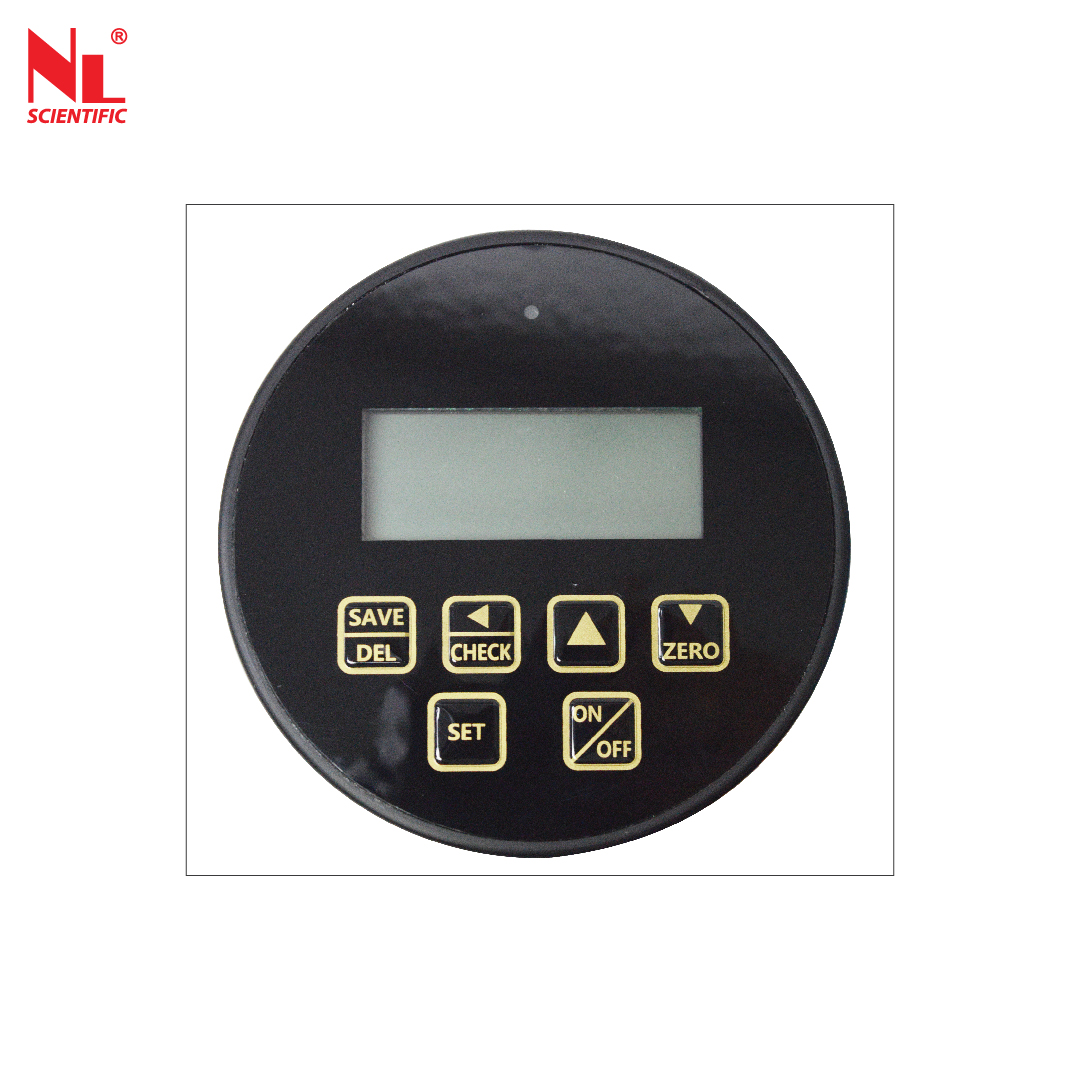

LED Display	Ø85 mm LED Screen
Adjustable Feel Distance	100 mm
Data Memory	500 Test Result
Tester Dimension (LxWxH)	270 X 200 X 180 mm

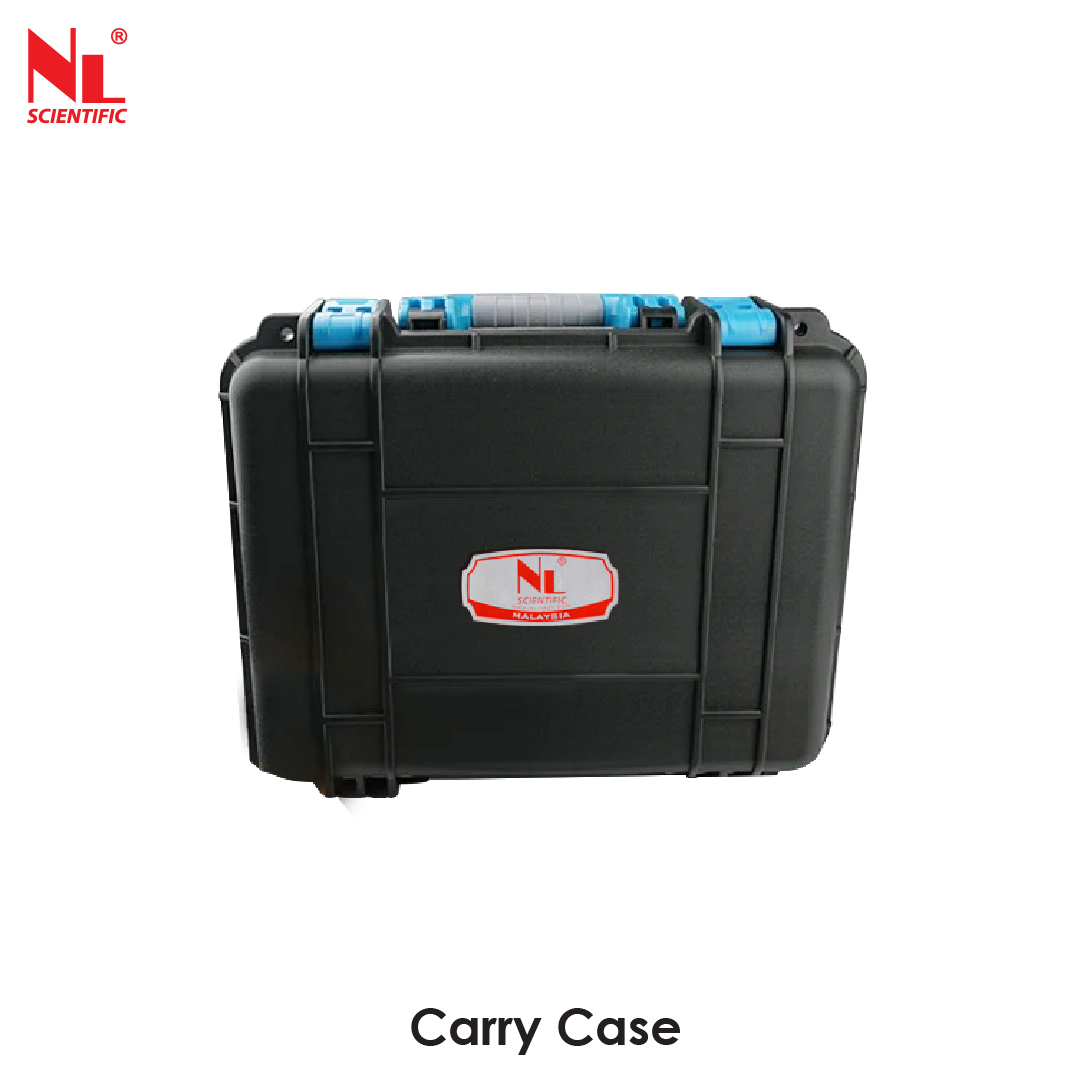

Carry Case Dimension (LxWxH)	440 X 370 X 220 mm
Tester Weight	6 kg
Power Source	Powered by 2x AAA batteries
