Pull Out Tester 50KN

The Pull Out Tester 50KN is used to measure the force needed to extract fasteners from materials like concrete. It also determines the bond strength between the anchored reinforcing steel bar (rebar) and concrete and checks anchorage performance in situ. It has electronic sensors and a digital interface for real-time readings and data logging. The equipment utilizes a calibrated load cell to ensure precise force measurement

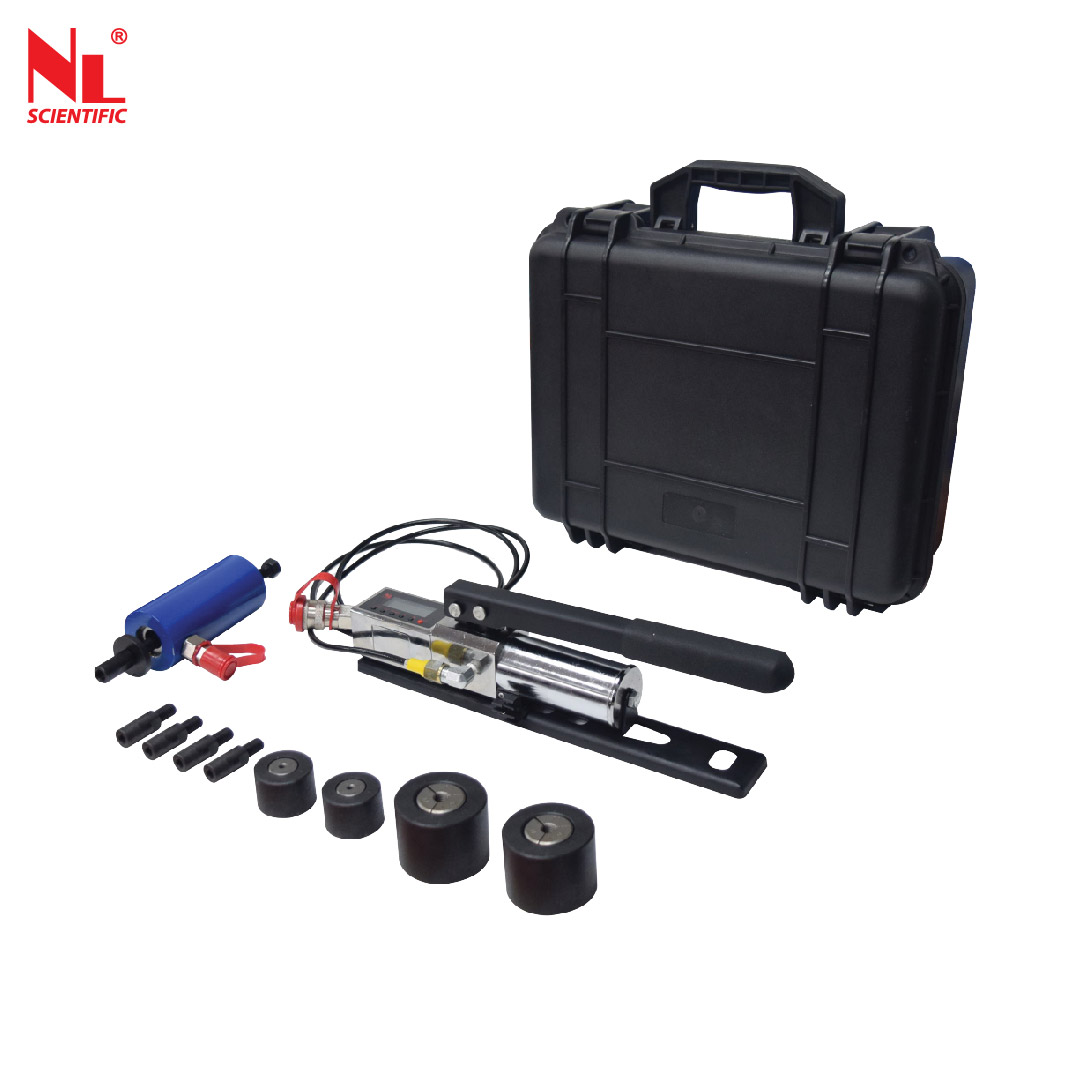

Equipped with a fixture for secure material and fastener holding, it minimizes slippage. Controls allow parameter setting, while data acquisition records force data. Some models offer analysis software for interpreting results. Crucial for assessing bond strength, it's vital in structural engineering, construction, and material research. This item available in Digital Load Gauge, has 5 tons capacity hydraulic hollow cylinder and hand pump. Supplied complete with six different specimen wedges (6 mm,8 mm, 10 mm, & 12 mm) which allows the user to test anchorage rebar with different diameters made of high-strength steel. It is suitable for up to 12 mm samples. It’s a portable anchor rod, steel rod, expansion bolt, and other anchoring device

Features of Pull-Out Tester 50KN

• Digital Interface which allows for real-time readings, data logging, and analysis
• Calibrated Load Cell ensures accurate measurement of the force required for extraction
• Data Acquisition System records force data throughout the test for analysis
• Robust Construction built to withstand the forces involved in pull-out testing
• Safety Features Ensures safe operation during testing procedures

Test Procedure of Pull-Out Tester 50KN

1. Setup: Prepare the material and fastener according to standards. Attach grips securely
2. Parameters: Set test parameters like pulling speed and displacement rate
3. Test: Apply tension to the fastener until it's fully extracted, monitoring force readings
4. Data Recording: Record force-displacement data throughout the test
5. Analysis: Analyze results for metrics like ultimate pull-out force
6. Interpretation: Interpret results in context and assess bond strength
7. Documentation: Document test procedure, results, and observations
8. Reporting: Generate a test report with findings and relevant data
9. Maintenance: Clean and maintain the tester, and recalibrate if needed

Technical Specifications of Pull-Out Tester 50KN:

Set Consists of:
