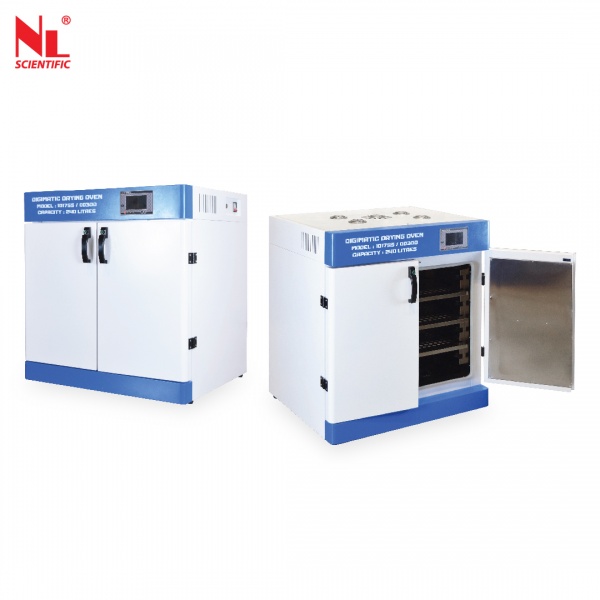

Digimatic Drying Oven 240L NL 1017 SS / 003DD

Digimatic Drying Oven 240L NL 1017 SS / 003DD

Standard: ASTM C127/C136/D558/D698/D1559, EN 932-5/1097-5, BS 1377/1924

Digimatic Drying Oven (2 Doors) 240L

Drying Sample

Digimatic Drying Oven is used to dry samples or materials to remove moisture and solvents. These ovens provide a controlled environment with precise temperature and timer for drying processes without causing damage to the samples, generating heat, and a ventilation system to remove moisture-laden air. Heat generated by high precision digital controller & temperature range from RT + 10-250°C. Come with hidden air inlet at the bottom and adjustable air exchange port at the top.

Technical Specifications

Model Number	NL 1017 SS / 003DD
Chamber Volume	240 Litres
Temp. Fluctuation	+-1.0°C
Temp. Range	Ambient temperature +10°C to 250°c
Number of Heaters	2 kW x 2 nos.
Number of Shelves	3 Shelves
Load per Shelve	30kg Standard Configuration
Interior Dimension (mm)	800(W) × 500(D) × 600(H)
Exterior Dimension (mm)	950(W) × 750(D) × 1000(H)
Packing Dimension (mm)	1160(W) x 900(D) x 1200(H)
Internal Chamber Material	304 Stainless Steel
External Casing	Cool Roll Plate with Powder Coating
Ventilation Fan	2 Nos
Weight	115 kg
Power	220 - 240V, 1Ph,4kW,15A, 50/60Hz

*1 Copy of Manual Instruction for each model
